ST1 - 1-Gang Box

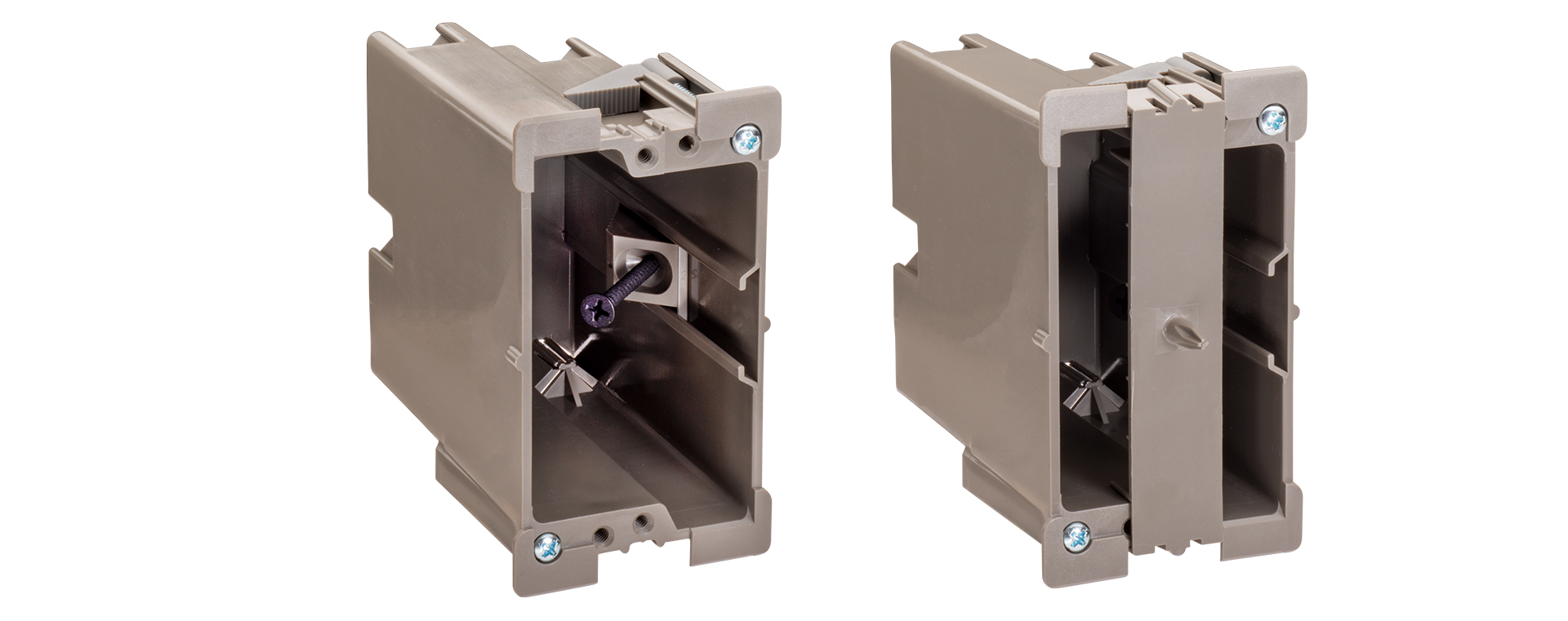

Rectangular device and ceiling box UL rated for 50lbs ceiling light fixture support
Dimensions - 4.25 high x 2 wide x 3 deep
Cubic inches - 19.5
Wire fill - 9 #14s, 8#12s, 7#10s
Clip on locator guide pin on front of box

WATCH OUR INSTALL VIDEOS

Installation instructions

Installation instructions for ST1 ceiling fixture support.

Ceiling luminaire support box ST1 (rectangular). For use in a finished structure (old work) ½” thru 1” thick.

1. Make a small hole in the sheet rock at desired light fixture location by using a Philip’s head screw driver.
2. Place the clip-on pilot locator bit (located on the face of the box) into that hole.
3. Use a marker or pencil to scribe a line around the perimeter of the box onto the paint ceiling.
4. Once a clear line is visible, cut away the line with a jab saw to make the perfect size hole every time.
5. Once a hole is cut, pull your romex thru that hole and insert it into one of the (built-in) wire inlets.

IMPORTANT Place the box into the hole. Then engage the single screw fastener into a ceiling rafter along with at least 2 toggles for light fixture support of no greater than 50lbs. Note this product is not rated for paddle fan support.

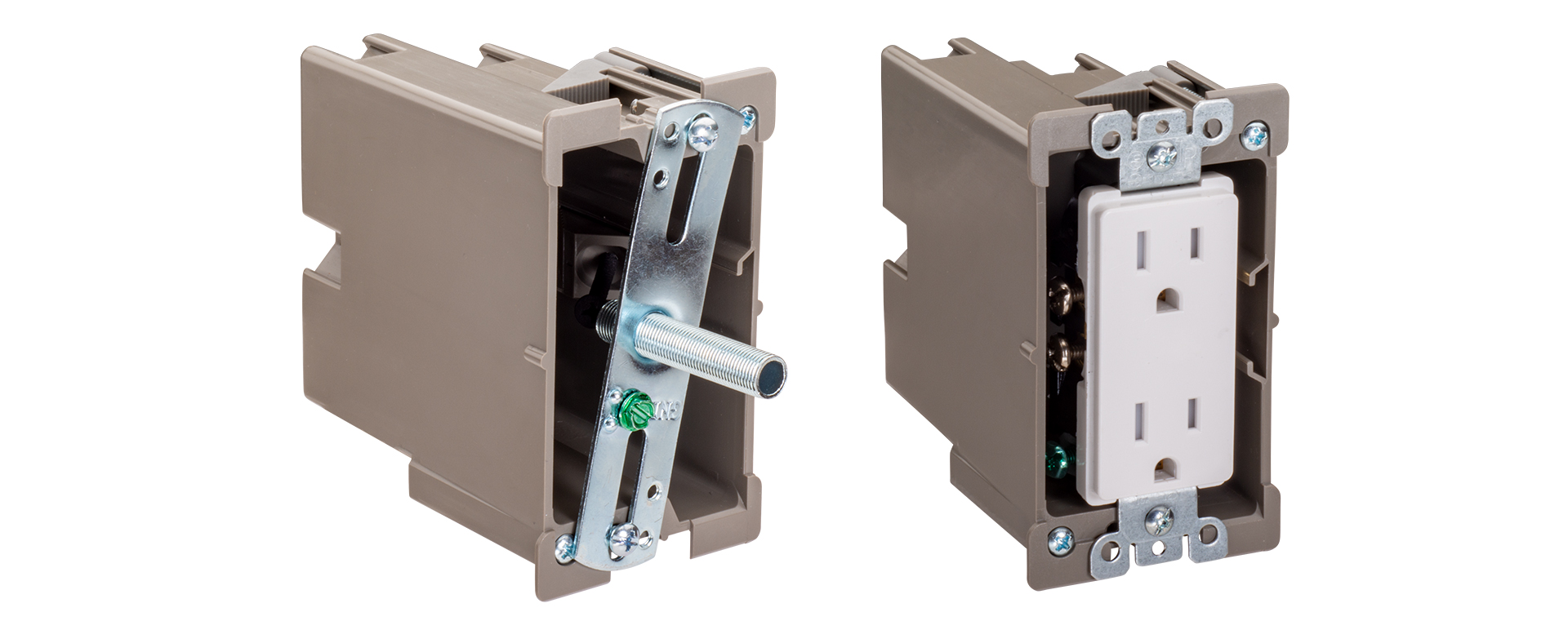

IMPORTANT Note 2 different size threaded holes built into the face of the box. The larger holes (8/32) are rated for light fixture support only. The smaller holes (6/32) are rated for device attachment only. Do not use the 6/32 holes for light fixture support.
