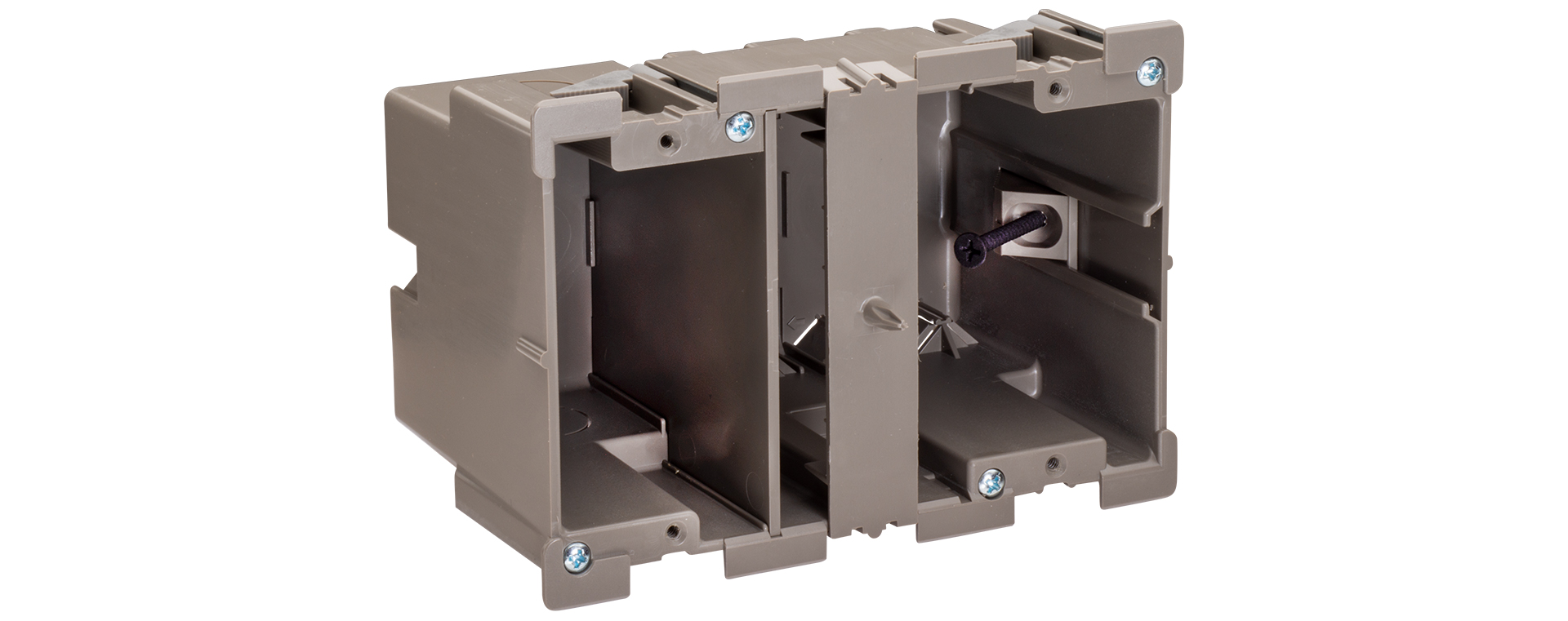

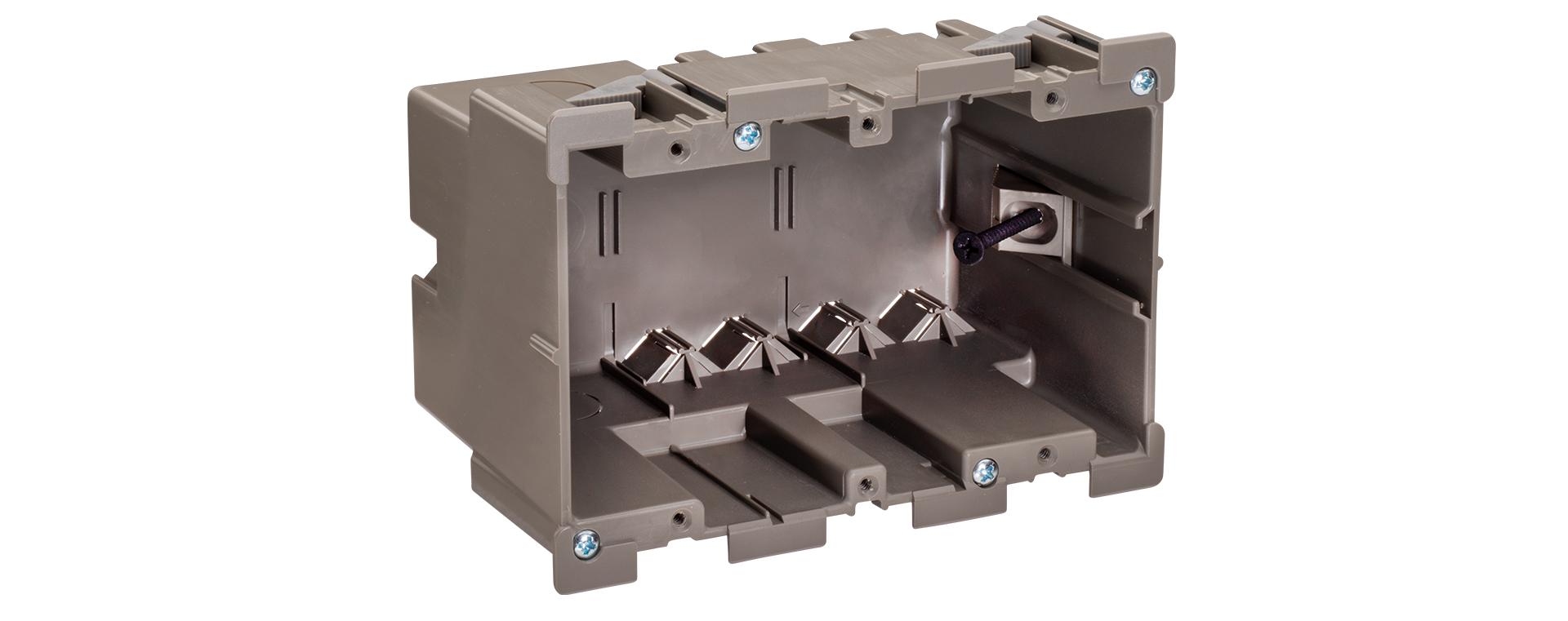

ST3 - 3-Gang Box

Rectangular 3gang device box
Dimensions - 4.25 high x 6 wide x 3.5 deep
Cubic inches – 56.5
Wire fill - 28 #14s, 25 #12s, 22 #10s
Clip on locator guide pin on front of box

WATCH OUR INSTALL VIDEOS

Installation instructions

Installation instructions for ST2 thru ST4.

For use in a finished structure (old work) ½ inch sheet rock.

1. Make a small hole in the sheet rock at desired location by using a Philip’s head screw driver.
2. Insert the clip-on locator guide bit (on the face of the box) into that hole.
3. Use a marker or pencil to scribe a line around the perimeter of the box onto the painted wall surface.
4. Once a clear line is visible, cut away the line with a jab saw to make the perfect size hole every time.
5. Once a hole is cut, pull your romex thru that hole and insert it into one of the (built-in) wire inlets.
6. Insert the Smartoggle box into the hole and secure it to the wall via toggles or interior stud screw.
7. IMPORTANT This product is a (stud no stud) box. It is UL approved for single screw mounting or toggle mounting should no wall stud exist.
